Transceiver and Cabling Solutions for HP 5820 Switch Series

Transceiver optics and cables are necessary accessories to HP 5820 switch series, and they play an important role in the fiber cabling infrastructure, this article will introduce the optical transceiver and cabling solutions for them.

Overview of HP 5820 Switch Series

The HPE 5820 Switch Series offers a versatile and high-performance 1 / 10GbE rack-mount data center switch architecture that allows you to deploy flexible. The series offers a variety of models that support high performance and low latency, allowing you to deploy the switches that best suit your needs. The series uses Smart Elastic Architecture (IRF) to simplify switch management by up to 88%. It can provide fusion time of fewer than 50 milliseconds. You can provide high performance and lower total cost of ownership (TCO) with the 5820 switch series while providing business recovery and high availability.

HP 5820 Switch Series Features

• For enterprise edge, or distribution/data center
• Up to 24-ports of 10GbE per unit/194 per stack
• Flex chassis—modular resiliency
• Cut-through switching for very low latency
• Hot-swappable I/O, power supplies, and fans

Models of HP 5820 Switch Series

Part Number	Description
	Model: HPE FlexFabric 5820X 14XG SFP+ 2-slot/1 OAA Slot Switch Part Number: JC106B Specification: • 4 RJ-45 autosensing 10/100/1000 ports • 2 module slots • 14 fixed 1000/10000 SFP+ ports • min=0 \ max=14 SFP+ Transceivers • 1 Power Supply Required • 2U – Height

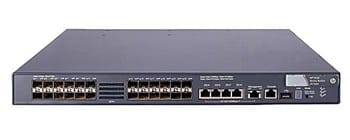

	Model: HPE FlexFabric 5820X 24XG SFP+ Switch Part Number: JC102B Specification: • 4 RJ-45 autosensing 10/100/1000 ports • 24 fixed 1000/10000 SFP+ ports • min=0 \ max=24 SFP+ Transceivers • 1 Power Supply Required • 1U – Height

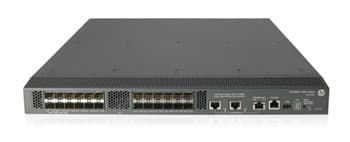

	Model: HPE FlexFabric 5820AF 24XG Switch Part Number: JG219B Specification: • 4 RJ-45 autosensing 10/100/1000 ports • 24 fixed 1000/10000 SFP+ ports • min=0 \ max=24 SFP+ Transceivers • 1 Power Supply Required • 2 Fan Trays Required • 1U – Height

The following tables list the supported transceiver modules and cables on the HP 5820 Switch Series. The supported transceiver covers 1G SFP, 10G SFP+, 10G SFP+ cable and 40G QSFP+ cable, which provides a total transceiver and cabling infrastructure solution for IT professionals.

Conclusion

The flexible and high-performance HPE 5820 switch series is suitable for 10GbE and 1 / 10GbE deployments by used as a ToR switch in the data center. It is easy to use and offers lower total cost of IT ownership. All transceivers and DACs listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics. Optcore recommends IT manager choosing the compatible transceiver and cabling solution from 3rd party vendor, and will be glad to offer our expertise in choosing the fiber infrastructure gears that best meets your needs.

Note: All trademarks, product, company names mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables including SFP, SFP+, QSFP are from 3rd Party, they are NOT OEM products and are NOT certified or endorsed by OEM.
